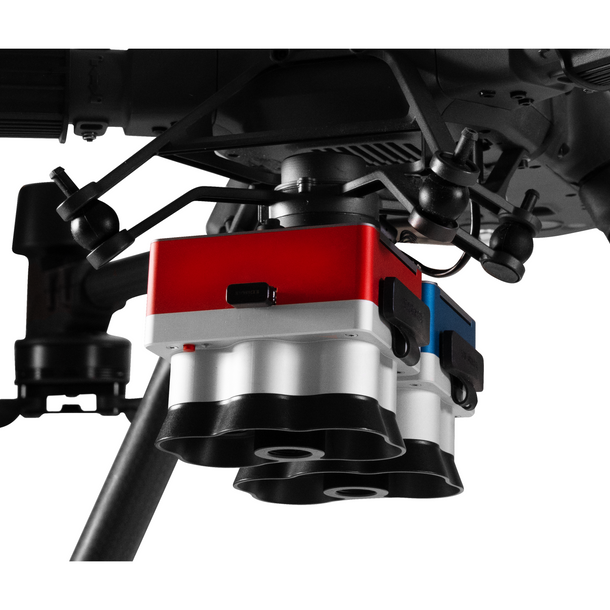

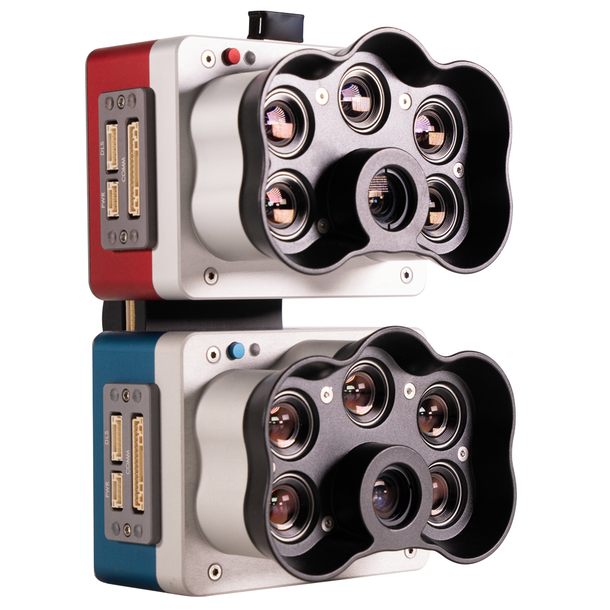

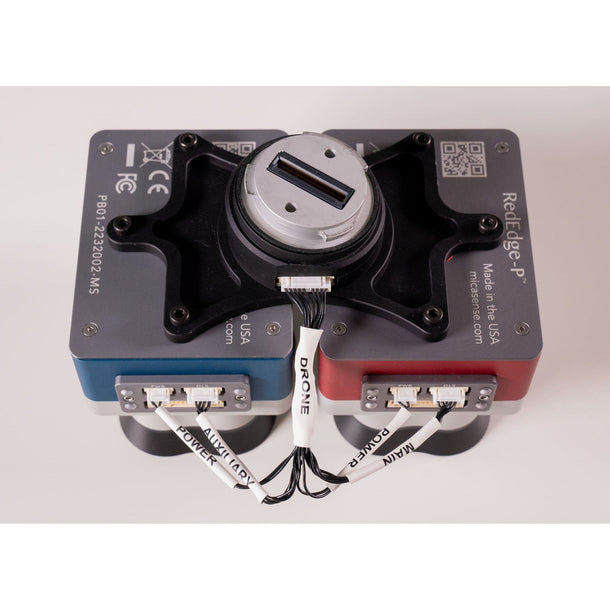

Micasense Rededge-P Dual (Red and Blue) Multispectral Kit

Weight: 745 g / 26.2 oz (two sensors, mounting hardware, DLS2 and cable)

Dimensions: 13.2 cm x 8.8 cm x 9.67 cm / 5.1 in x 3.1 in x 3.5 in

External power supply: 7.0 V - 25.2 V

Power input: 11/14.0/20W (standby, average, peak)

Spectral bands: Coastal Blue 444(28)*, Blue 475(32), Green 531(14)*, Green 560(27), Red 650(16)*, Red 668(14), Red Edge 705(10)*, Red Edge 717(12), Near IR 740(18)*, Near IR 842(57)

RGB output: 5.1 MP** (global shutter, aligned with all bands)

Sensor resolution: 1456 x 1088 (1.6 MP per multispectral band)

2464 x 2056 (5.1 MP panchromatic band)

Soil sample spacing

7.7 cm / 3 in per pixel (per multispectral band) at 120 m / ~400 ft AGL

3.98 cm / 1.5 in per pixel (panchromatic band) at 120 m AGL

Recording speed: up to 3 frames per second raw DNG

Storage: CFexpress card

Interfaces: Three configurable GPIO: choice of trigger input, PPS input, PPS output and top or frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet.

Field of view: 50° HFOV x 38° VFOV (multispectral), 44° HFOV x 38° VFOV (panchromatic).

Heat: Environment without airflow: 0-40 °C / 0-104 °F. Environment with airflow >0.5 metres per second / >1.1 mph: 0-50 °C / 0-122 °F

IP rating: IP4X
