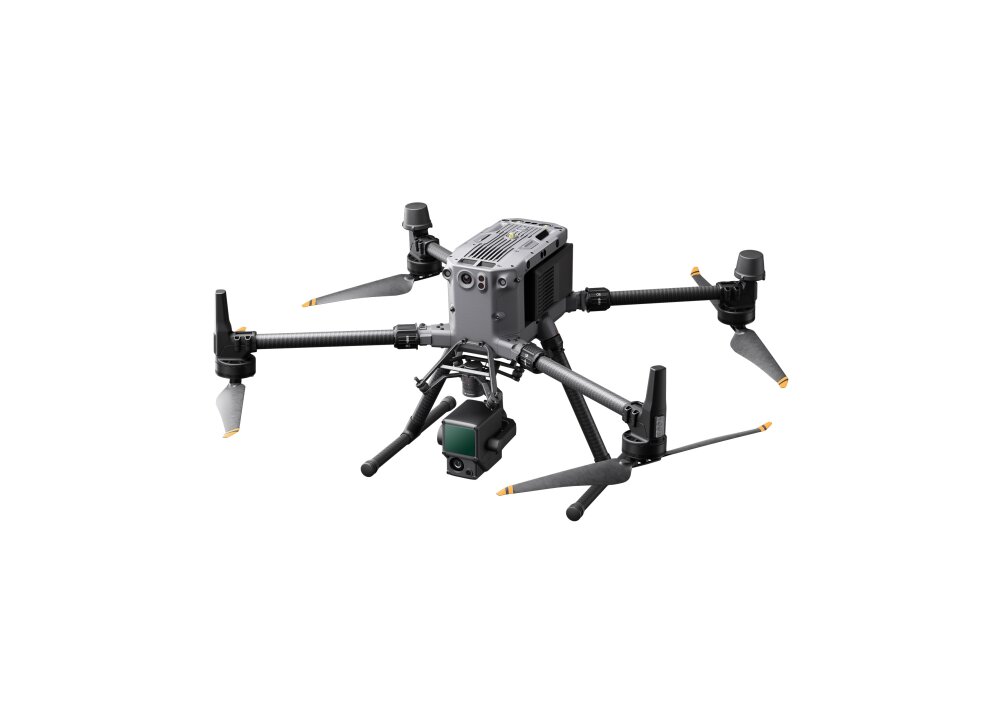

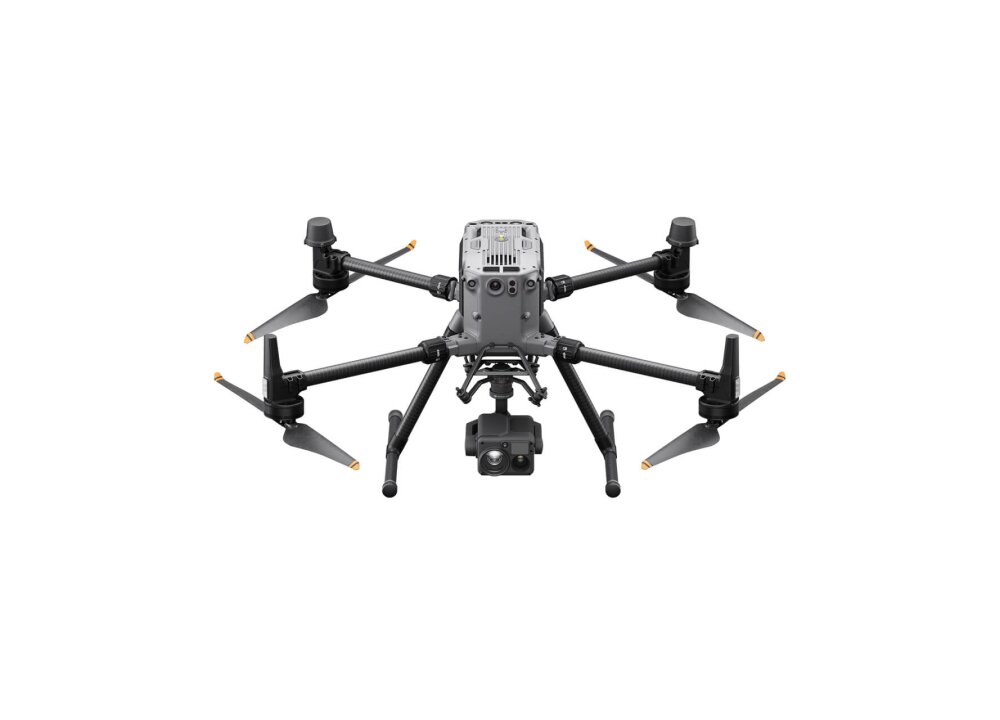

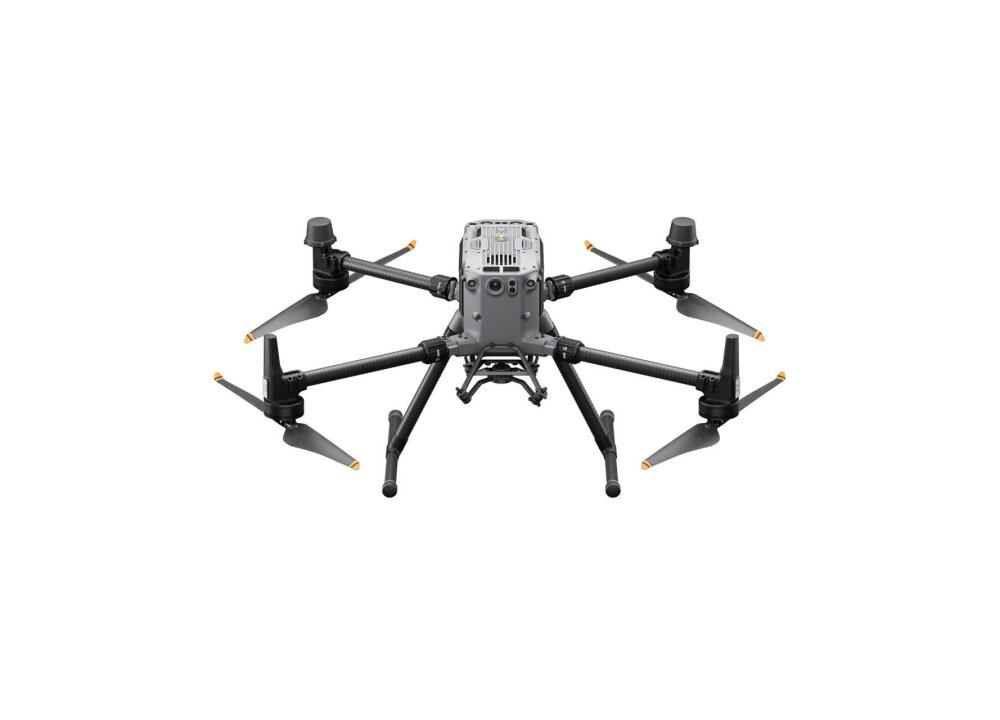

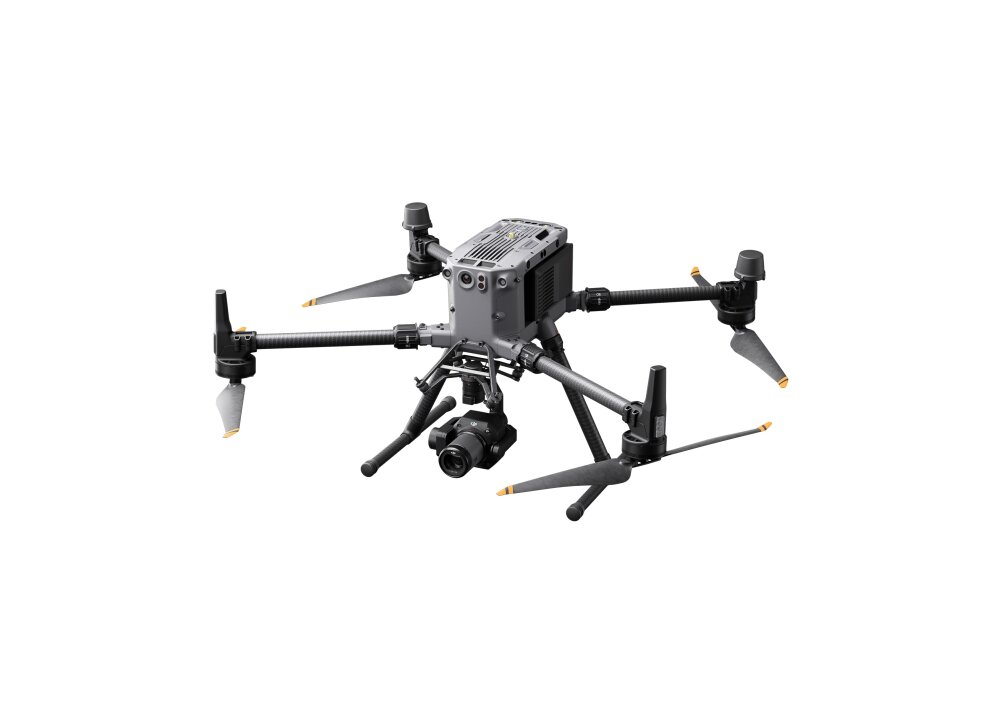

DJI Matrice M350 RTK

Dimensions (unfolded, without propellers): 810×670×430 mm (L×W×H)

Dimensions (folded, with propellers): 430×420×430 mm (L×W×H)

Diagonal Wheelbase: 895 mm

Weight (with single downward gimbal):

• Without batteries: about 3.77 kg
• With two TB65 batteries: about 6.47 kg

Maximum Payload of Single Gimbal Dampeners: 960 g

Maximum Starting Weight: 9.2 kg

Operating frequency:

• 2.4000-2.4835 GHz
• 5.150-5.250 GHz (CE: 5.170-5.250 GHz)
• 5.725-5.850 GHz

Transmission power (EIRP):

• 2.4000-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
• 5.150-5.250 GHz (CE: 5.170-5.250 GHz): < 23 dBm (CE)
• 5.725-5.850 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)

Hover accuracy (with moderate or no wind):

• Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning)
• Horizontal: ±0.3 m (with vision positioning), ±1.5 m (with GNSS positioning), ±0.1 m (with RTK positioning)

RTK Positioning accuracy (RTK FIX):

• Horizontal: 1 cm + 1 ppm
• Vertical: 1.5 cm + 1 ppm

Performance data

Maximum angular speed:

• Pitch: 300°/s
• Yaw: 100°/s

Maximum Slope angle: 30° (In N mode and with the forward vision system enabled: 25°)

Maximum Ascent Rate: 6 m/s

Maximum lowering speed (vertical): 5 m/s

Maximum Inclined Descent Rate: 7 m/s

Maximum horizontal speed: 23 m/s

Maximum Flight Altitude:

• 5000 m (with the 2110s propellers and a take-off weight ≤ 7.4 kg)
• 7000 m (with the 2112 Height Low Noise Propellers and a take-off weight ≤ 7.2 kg)

Maximum Wind Resistance: 12 m/s

Maximum flight time: 55 minutes

Supported DJI Gimbals: Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, Zenmuse L1, Zenmuse L2

Support for Third-Party Payloads: Supports only certified payloads developed based on DJI Payload SDK.

Supported Gimbal Configurations:

• Single downward gimbal
• Single upward gimbal
• Double downward gimbals
• Single downward gimbal + single upward gimbal
• Dual downward gimbals + single upward gimbal

Ingress Protection Rating: IP55

Global Navigation Satellite SystemGPS + GLONASS + BeiDou + Galileo

Operating temperature: -20° to 50° C (-4° to 122° F)
