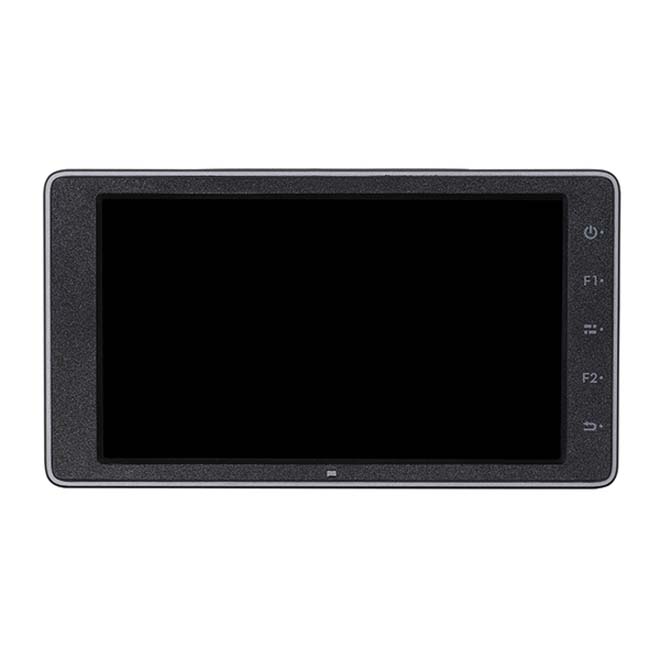

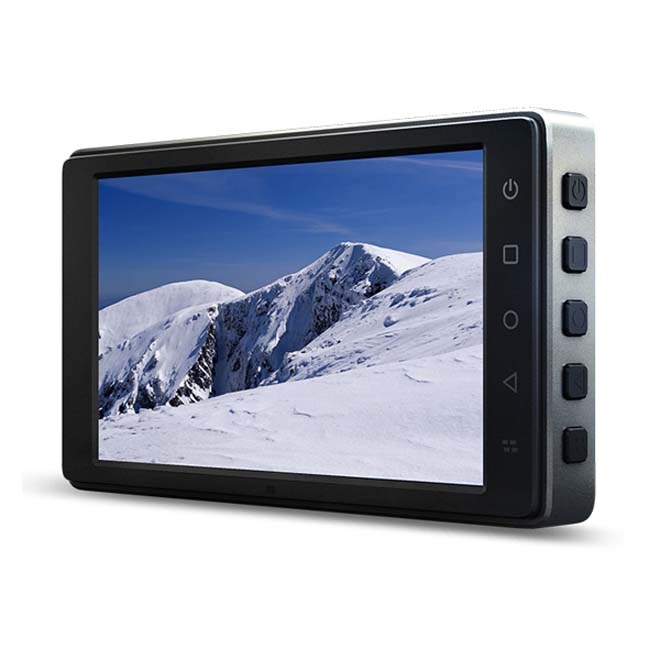

DJI Crystalsky Ultra 7.85 Inch Monitor

Made for aerial photography, the CrystalSky monitor has an ultra-bright screen that is highly visible with bright sunshine. It is designed to work with the DJI GO app, for full camera control.

Ultra-bright

With a maximum of 2000 cd/m², the CrystalSky is 4x brighter than smartphones, for example. Details are crisp and sharp, colours are vivid so you can fine-tune the picture quality.

Smooth video playback

 The DJI CrystalSky 7.85-inch display is optimised to decode smooth real-time video with minimal latency.

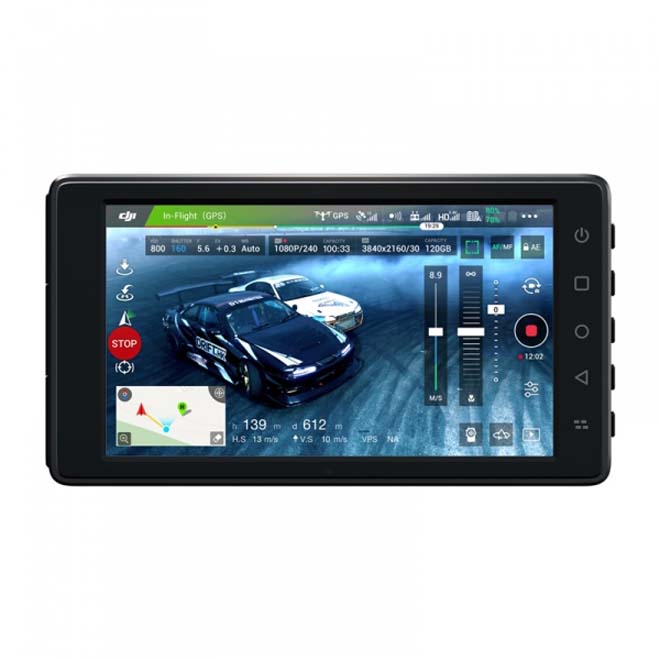

Customised system and the DJI GO/DJI GO 4 App

 Through a new system, the DJI CrystalSky 5.5-inch Monitor achieves optimal performance and works seamlessly with the DJI GO/DJI GO 4 application, giving you access to the following options: aicraft parameters, camera control, image clips management, and playback of the footage.
Offline maps can also be downloaded, so you are never internet dependent.

Battery and operating time

The battery is 4920 mAh and supports quick charge. You will achieve about an operating time of 5 to 6 hours.
Due to the efficiency of the battery, it drains simultaneously.

Dual micro SD port

Equipped with two micro SD ports, the CrystalSky monitor's storage can be expanded, or recordings recorded on a micro SD card can be played back directly on the monitor. It can also be used for backups of footage. Using editors built into DJI GO, edits can be made quickly and shared directly to social media.
The CrystalSky monitor supports H.264 and H.265 video decoding, allowing these files to be displayed at 30fps and 60fps respectively. These videos can also be output via the HDMI port.

Ports and network

Up to 4K video can be played on the CrystalSky monitor's HDMI port on FPV goggles or and other display devices.
Built-in dual-band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage via the USB-A port. When connected to the internet, the CrystalSky monitor easily accesses system upgrades, live streaming, photo or video sharing, data synchronisation and more.
File sizes are optimised as much as possible to minimise mobile data requirements. Micro USB and USB-C ports allow you to easily connect the CrystalSky monitor to a remote control or other devices.

Optimised for extreme temperatures

Most devices are designed to operate in normal temperature ranges. The CrystalSky monitor's external battery is designed for more extreme temperatures. It can operate at a temperature of -20°C (-4°F) and functions as normal at temperatures up to 40°C (104°F) with the internal cooling system.

Compatibility DJI AIR SYSTEM

The CrystalSky monitor can connect via Wi-Fi or via remote control to the:

• Inspire series


• Phantom 4 series


• Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced)


• Matrice series


• Mavic Pro


• Osmo series (except the Osmo Mobile)

Also, CrystalSky can be easily connected to the Cendence remote control without an additional monitor bracket. However, the monitor bracket is recommended. Mavic Pro and Osmo series gimbal cameras (with the exception of the Osmo Mobile) are only compatible with 5.5 " Crystalsky monitors.
